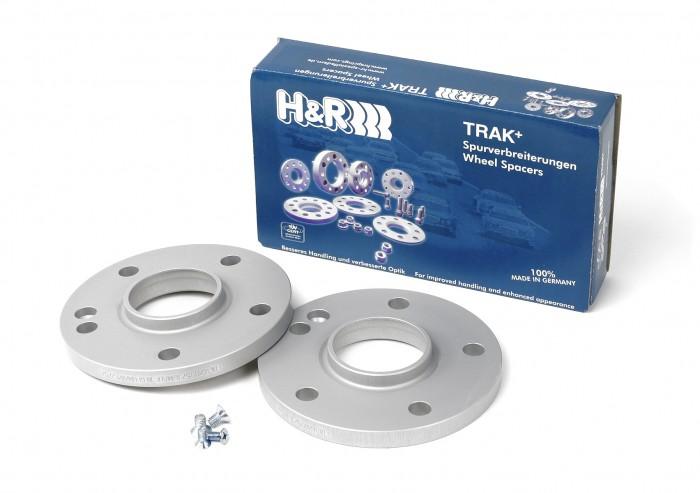

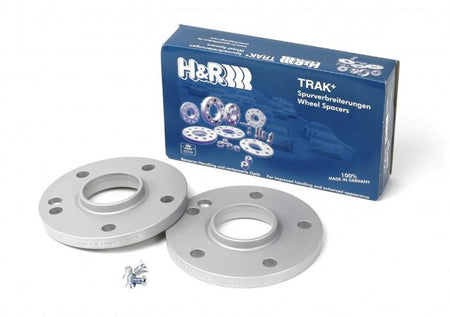

H&R Trak+ 7mm DR Wheel Adaptor Bolt 5/130 Center Bore 71.6 Bolt Thread 14x1.5
Regular price
$116.99 USD
Regular price
$129.95 USD
Sale
Sale price
$116.99 USD
Couldn't load pickup availability
All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here. When ordering wheel bolts, please follow these guidelines: a)If possible, name the brand of wheel. b) New bolts must be longer than the original bolts by the width of the wheel spacer used. The bolt head must be identical to the existing bolt: Taper 60: End digit 01 Round head for M12/d24 mm, M14/d28 mm: End digit 02 Round head for M12/d26 mm (e.g. OE VAG-wheels): End digit 03 Flat head for Porsche original wheels M14 x 1.5: End digit 06 d) Safety guidelines (Minimum number of turns for wheel bolts / nuts): M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2021-2022 | Porsche | 718 Boxster | 25 Years |
| 2017-2025 | Porsche | 718 Boxster | Base |
| 2018-2019 | Porsche | 718 Boxster | GTS |
| 2021-2025 | Porsche | 718 Boxster | GTS 4.0 |
| 2017-2025 | Porsche | 718 Boxster | S |
| 2024-2025 | Porsche | 718 Boxster | Style Edition |
| 2020-2023 | Porsche | 718 Boxster | T |
| 2017-2025 | Porsche | 718 Cayman | Base |
| 2020-2023 | Porsche | 718 Cayman | GT4 |
| 2022-2025 | Porsche | 718 Cayman | GT4 RS |
| 2018-2019 | Porsche | 718 Cayman | GTS |
| 2021-2025 | Porsche | 718 Cayman | GTS 4.0 |
| 2017-2025 | Porsche | 718 Cayman | S |
| 2024-2025 | Porsche | 718 Cayman | Style Edition |
| 2020-2023 | Porsche | 718 Cayman | T |
| 1998-2019 | Porsche | 911 | Carrera |
| 1999-2004,2013-2024 | Porsche | 911 | Carrera 4 |
| 2004,2013-2024 | Porsche | 911 | Carrera 4S |
| 2015-2016,2018-2019 | Porsche | 911 | Carrera GTS |
| 2012-2019 | Porsche | 911 | Carrera S |
| 2002-2004,2008 | Porsche | 911 | GT2 |
| 2011 | Porsche | 911 | GT2 RS |
| 2004-2005,2007-2008 | Porsche | 911 | GT3 |
| 2001-2005,2007-2008,2014-2019 | Porsche | 911 | Turbo |
| 2005,2014-2019 | Porsche | 911 | Turbo S |
| 1997-1999,2004-2011,2013-2016 | Porsche | Boxster | Base |
| 2016 | Porsche | Boxster | Black Edition |
| 2015-2016 | Porsche | Boxster | GTS |
| 2008 | Porsche | Boxster | Limited Edition |
| 2000-2003 | Porsche | Boxster | Roadster |
| 2000-2003 | Porsche | Boxster | Roadster S |
| 2008 | Porsche | Boxster | RS 60 Spyder |
| 2004-2011,2013-2016 | Porsche | Boxster | S |
| 2008 | Porsche | Boxster | S Limited Edition |
| 2009 | Porsche | Boxster | S Porsche Design 2 |
| 2004 | Porsche | Boxster | S Special Edition |
| 2011,2016 | Porsche | Boxster | Spyder |
| 2007-2012,2014-2016 | Porsche | Cayman | Base |
| 2016 | Porsche | Cayman | Black Edition |
| 2016 | Porsche | Cayman | GT4 |
| 2015-2016 | Porsche | Cayman | GTS |
| 2012 | Porsche | Cayman | R |
| 2006-2012,2014-2016 | Porsche | Cayman | S |
| 2011-2023 | Porsche | Panamera | 4 |
| 2018-2023 | Porsche | Panamera | 4 E-Hybrid |
| 2018-2023 | Porsche | Panamera | 4 E-Hybrid Executive |
| 2022-2023 | Porsche | Panamera | 4 E-Hybrid Platinum Edition |
| 2018-2023 | Porsche | Panamera | 4 E-Hybrid Sport Turismo |
| 2016 | Porsche | Panamera | 4 Edition |
| 2017-2023 | Porsche | Panamera | 4 Executive |
| 2022-2023 | Porsche | Panamera | 4 Platinum Edition |
| 2018-2023 | Porsche | Panamera | 4 Sport Turismo |
| 2014-2023 | Porsche | Panamera | 4S |
| 2021-2023 | Porsche | Panamera | 4S E-Hybrid |
| 2021-2023 | Porsche | Panamera | 4S E-Hybrid Executive |
| 2021-2023 | Porsche | Panamera | 4S E-Hybrid Sport Turismo |
| 2014-2023 | Porsche | Panamera | 4S Executive |
| 2018-2023 | Porsche | Panamera | 4S Sport Turismo |
| 2011-2023 | Porsche | Panamera | Base |
| 2016 | Porsche | Panamera | Edition |
| 2019-2023 | Porsche | Panamera | GTS |
| 2019-2023 | Porsche | Panamera | GTS Sport Turismo |
| 2022-2023 | Porsche | Panamera | Platinum Edition |
| 2014-2016 | Porsche | Panamera | S |
| 2014-2016 | Porsche | Panamera | S E-Hybrid |
| 2012-2013 | Porsche | Panamera | S Hybrid |
| 2017-2020 | Porsche | Panamera | Turbo |
| 2017-2020 | Porsche | Panamera | Turbo Executive |
| 2021-2023 | Porsche | Panamera | Turbo S |
| 2018-2023 | Porsche | Panamera | Turbo S E-Hybrid |
| 2018-2023 | Porsche | Panamera | Turbo S E-Hybrid Executive |
| 2018-2023 | Porsche | Panamera | Turbo S E-Hybrid Sport Turismo |
| 2021-2023 | Porsche | Panamera | Turbo S Executive |
| 2021-2023 | Porsche | Panamera | Turbo S Sport Turismo |
| 2018-2020 | Porsche | Panamera | Turbo Sport Turismo |
